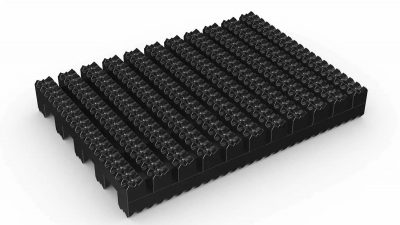

Heel Proof Matting
Key Features
- Perfect for all footwear types
- Non slip finish
- Hardwearing for demanding applications
- Perfect for high level pedestrian traffic
- Good chemical resistance
- East to install
- Fire resistant
- Low maintenance
Product Description
Our anti slip, heel proof matting is a highly durable as well as versatile safety matting product. It is suitable for use as both entrance and walkway matting in a variety of applications. Due to the different types of footwear that people use, certain safety mats aren’t able to provide sufficient levels of grip. This is particularly evident in thin heels, as they often slip between the gripping ribs in the matting. However, our heel proof matting puts an end to this problem, offering excellent levels of grip regardless of the choice of footwear.
Our heel matting features extra deep gripping ribs which we position closer together to ensure even the thinnest heel doesn’t slip between the gaps. The heavy duty ribs also serve to remove even the most stubborn dirt and debris stuck underneath your shoes. Aside from offering excellent gripping underfoot, we design our heel proof matting to sit securely on top of a wide variety of surfaces to ensure you have a safe surface to walk on.
The superior versatility of this matting enables you to use it in a variety of applications with ease. However, our customers typically use this product in areas that are prone to becoming wet and slippery. Surfaces such as hardwood decking, or any wooden floor can greatly benefit from the use of this product. Outdoor areas such as bridges, pedestrian walkways and uneven walkways can become significantly safer through the use of our heel proof matting.
Colour Options
Ancillaries: For Surface-Mounted Installations
PVC Edging (W: 60mm X H: 14mm)
Supplied in rolls of 10.1m length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue and yellow. Size: 60mm x 14mm x 10.1m.
Connector Clips: Side-to-Side (H: 14mm)
For joining sections of matting together side-to-side. Supplied in packs of 10.
Aluminium Edging (W: 45mm X H: 14mm)
Supplied in sections of 2m length with fixing screws and plugs. Comes in anodised aluminium and powder coated yellow. Size: 45mm x 14mm x 2m.
PVC Snap Track (H: 14mm)
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in black and dark grey. Size: 14mm x 2.5m.
Ancillaries: For Recessed Installations

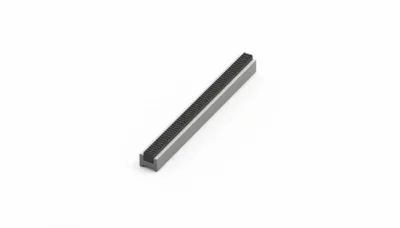

H Section (H: 14mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3m length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 14mm x 13mm.

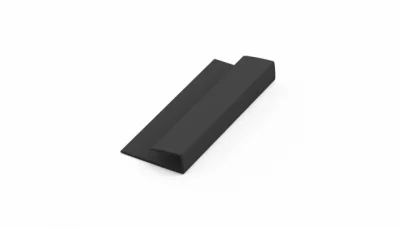

J Frame (H: 18mm)
Installing Heel Proof Matting against a wall? You’ll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 3m length. Comes in dark grey and black. Size: 18mm x 60mm.

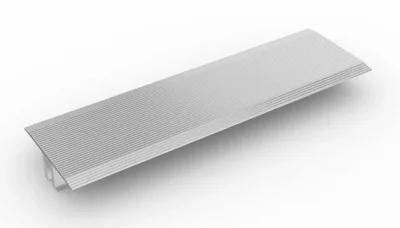

TF Frame (H: 14mm)
You can use a T/L frame (55mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m length with fixing screws and plugs. Comes in anodised aluminium.

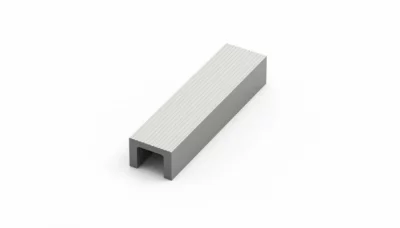

U Section (H: 14mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m length, with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 14mm x 19mm.

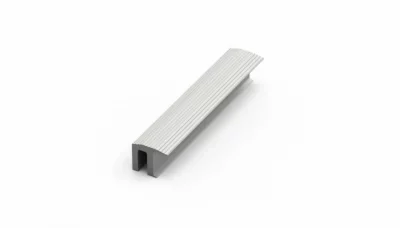

R Frame (H: 14mm)
You’ll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m length with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 14mm x 12mm.

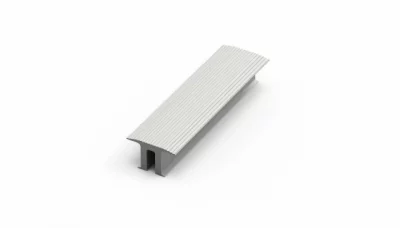

T Frame (H: 14mm)
You can use a T frame (27mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m length with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black.

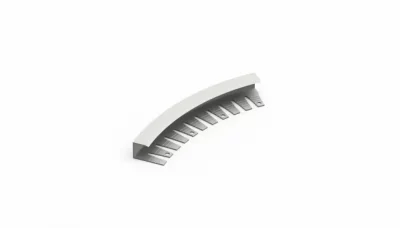

L Frame (H: 15mm)
Installing around a circular door or non rectangular space? You’ll need a L frame to secure the matting. Size: 15mm x 2.7m length.
Ancillaries: For Surface-Mounted Installations – Low Profile
PVC Edging (W: 50mm X H: 10mm)
Supplied in rolls of 10.1m length. One tube of cold welding paste recommended for every 10m of edging. Comes in black and dark grey. Size: 50mm x 10mm x 10.1m.
PVC Snap Track (H: 10.5mm)
Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in dark grey. Size: 10.5mm x 2.5m.
Connector Clips: Side-to-Side (H: 10mm)
For joining sections of low profile matting together side-to-side. Supplied in packs of 10.
Ancillaries: For Recessed Installations – Low Profile

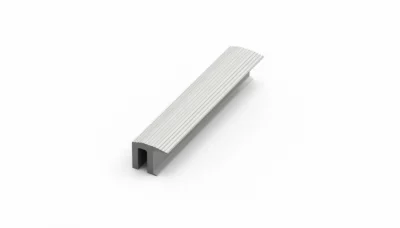

R Frame (H: 10mm)
You’ll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m length with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 10mm x 12mm.
Z Frame (H: 10mm)
Installing matting next to ceramic tiles? You’ll need a Z frame to secure the matting. Supplied in sections of 3.6m length with fixing screws and plugs. Comes in anodised aluminium. Size: 10mm x 24mm.

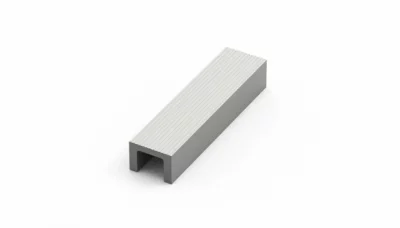

U Section (H: 10mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m length, with fixing screws and plugs. Comes in anodised aluminium, powder coated dark grey and black. Size: 10mm x 18mm.

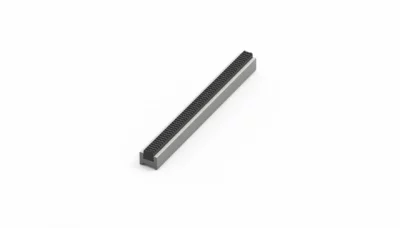

H Section (H: 10mm)
If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3.6m length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 10mm x 13mm.
Specifications
| Application: | Entrance matting, Walkway matting, Heavy footfall areas, Uneven surfaces, Slippery surfaces |
| Product: | Heel Safe non slip matting |
| Hardness (Shore A): | N/A |
| Material: | PVC |
| Colour: | Dark Grey, Oxford Blue, Black |
Potential Applications
- Interior & exterior walkways
- Entrance matting
- Heavy pedestrian areas
- Anti-slip decking matting
- Uneven surface cover
- Production line matting
- Commercial flooring
Technical Data
| Properties | Values | Properties | Values |
|---|---|---|---|
| Thickness | 14mm | Composition | Flexible Polyvinyl Chloride (PVC) |
| Roll size | 5m x 120cm, 10m x 60cm, 10m x 91cm | Acoustic Insulation | Excellent sound absorption properties |
| Weight | 10.5kg/M2 | Chemical Resistance | Resistant to most acids, alkalines and oils |
| Fire Resistance | EN ISO 13501-1:2007-Bfl-S1, ASTM E648, Class 1 | ||
| Slip Resistance | DIN 51130: R12, V10 | ||
| Temperature Range | -23°C to +60°C | ||
| UV Resistance | Resistant to PVC degradation | ||
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2% | ||
| Environment | 100% recyclable |
