Self-Grip Top Seal
Key Features
- Highly durable seal
- Airtight and watertight sealing
- Good weathering and chemical resistance
- Quick and easy installation
- No fasteners or adhesive required
- Lightweight and flexible
- Many profiles available from stock
Product Description
The Rubber Company supply a wide variety of high-quality self-grip top seal profiles. These products are perfect for creating an airtight and watertight seal on any window or roof panel.
All of our profiles feature a self-gripping U clip, which ensures the seal remains in place without the need for adhesive. We offer a diverse selection of products to suit any application.

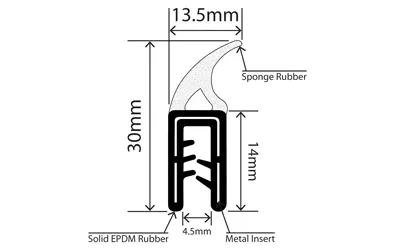

The U section of our self-grip top seal profiles are reinforced with either a wire or a steel core. This ensures that the clip is able to maintain its original shape even after a long period of use. It also adds additional strength to the product which enables it to product sharp and delicate edges from damage.
Compression Values
After installing our self-grip top seal profiles, it is important to ensure that the compression of the sponge part should not exceed a maximum of 50%. Exceeding this can greatly affect the overall compression and recovery of the product. An ideal compression rate should be between 30-40%, as this allows the product to return to its original state. If the sponge part of the profile has two sections then this value should be applied to each section.
The crucial quality for sealing products is the enduring deformation. This essentially refers to how well the product recovers after you compress it at a specific temperature for a length of time.
The most common characteristic is the compression set (DVR) ASTM D395. In order to determine this value, the sponge part of the product is compressed by 25% and then stored at a set temperature for a predetermined period of time. After the product has been released and left at room temperature for 30 minutes, the height or width (depending on position) is measured and the enduring deformation can be identified.
A DVR of 0% would indicate that the test body has reached its original height (unlikely in reality), while a DVR of 100% shows that the test body has no recovery and would remain completely deformed.
This is important to note because, as the sponge compresses, it puts pressure on the seal. After an extended period of time, the rubber can deform. If the DVR is too high, the elasticity performance and sealing will decrease, affecting the performance of the product.
Specifications
| Application: | Waterproofing, Windows, Roof Panels, Edge Protection, Safety Tool |
| Product: | Self-Grip Top Seal |
| Hardness (Shore A): | 67 - 82° |
| Material: | EPDM Rubber / EPDM Sponge / Wire Carrier |
| Colour: | Black |
Potential Applications
- Door seals
- Watertight hatch seals
- Garage seals
- Enclosure seals
- Industrial applications
- Decorative trim
Technical Data
| Properties | Values | ||
|---|---|---|---|
| Minimum Temperature | -10°C | ||
| Maximum Temperature | +60°C |
